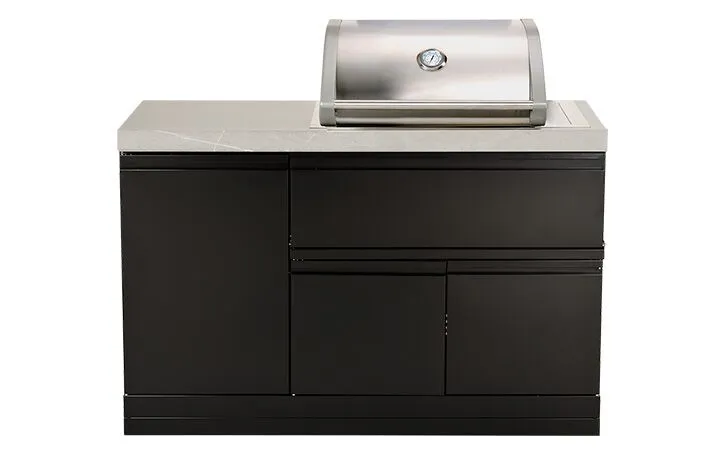

Mini kitchen with 2 Burner Gas BBQ
$4,699 – $5,549
The New CROSSRAY Mini Outdoor Kitchen with the new 2 Burner Drop In gas BBQ elevates outdoor cooking to a whole new level – perfect for your, courtyard or alfresco area. Add a real touch of class with this unique, world class fully-equipped kitchen, that gives you everything you need to prepare the perfect meal for family and friends.
Features
- Complete, compact outdoor kitchen featuring a flush-mounted CROSSRAY 2B gas BBQ, single fridge, with stone benchtop and under-bench storage

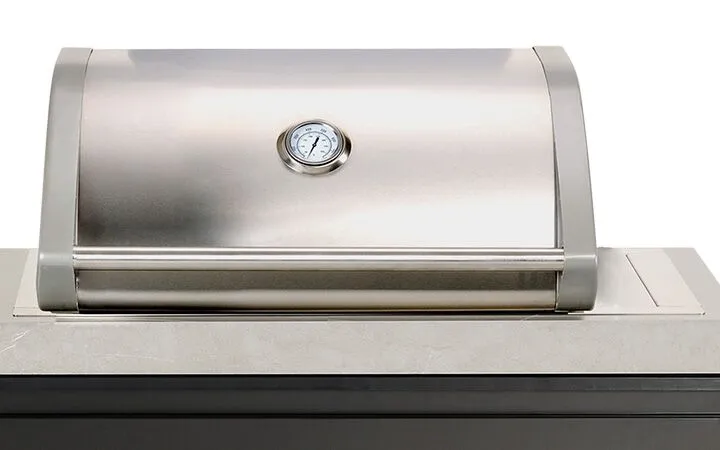

- High intensity, high temperature output gas BBQ – in-built so that it is flush with the benchtop.
- Features a high quality sintered stone benchtop (60mm edge) and 63L single SS fridge with temperature control, triple glazing, blue LED back-lighting and lockable.
- Perfect for smaller backyards & alfresco areas, townhouses, balconies & apartments
- Cabinet includes a drop down top shelf and 2 door storage space underneath (with magnetic closure). Cabinets upgraded to zinc coated/powder coated steel to ensure corrosion protection

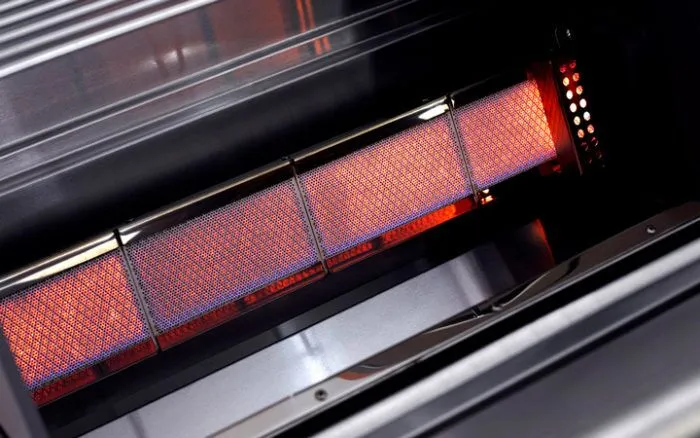

- 2B flush mounted BBQ, 2 x 13MJ angled ceramic infrared burners. Flame failure included as standard and meets indoor code
- BBQ with dual level cooking surfaces, double skin hood, 140C to 350C+ temperature output
- Electronic ignition with knobs in a concealed control panel next to the BBQ. Front kickboards included as standard. Side kickboard optional
- Cook with the lid up or down. Plenty of hood height for large meats. Compatible with a rotisserie. NG conversion and top access conversion kits available
CROSSRAY Electric Mini Kitchen - 2 Standard Configurations
TCE15F-MK1 $5,549
Mini Electric Kitchen with single fridge
TCE15F-MK2 $4,699
Mini Electric Kitchen
High quality one-piece sintered stone benchtop (60mm mitred edge)
Zinc/powder coated black cabinet with double skinned doors and fold-down top shelf
Flush mounted 2 burner gas BBQ with ceramic infra-red burners, flame failure device comes as standard
63L/60w single SS fridge with temperature control, triple glazed lockable door and blue LED back-lighting
All CROSSRAY BBQ’s come with grill plates as standard
Specifications
Dimensions & Cooking Area
1385mm (W) x 610mm (D) x 1403mm (H)
Cooking area: 3556cm2
Weight:
TC2K-MK1 - 131kgs
TC2K-MK2 - 102.3kgs
Materials
- BBQ: 304 Stainless Steel front and rear body panels
- Die cast aluminum side and end panels
- 2 x surface combustion infrared burners
- Single Stainless steel Fridge, 63L, LED backlights
- Cabinet: Satin black, zinc coated/powder coated steel with double skinned doors
- Benchtop: One-piece sintered stone with 60mm edge
Specifications
- BBQ: Refer to model TCS2-IBL for more detailed information.
- Burner capacity 13MJ/hr each (Total 26 MJ/hr)
- Includes BBQ head only

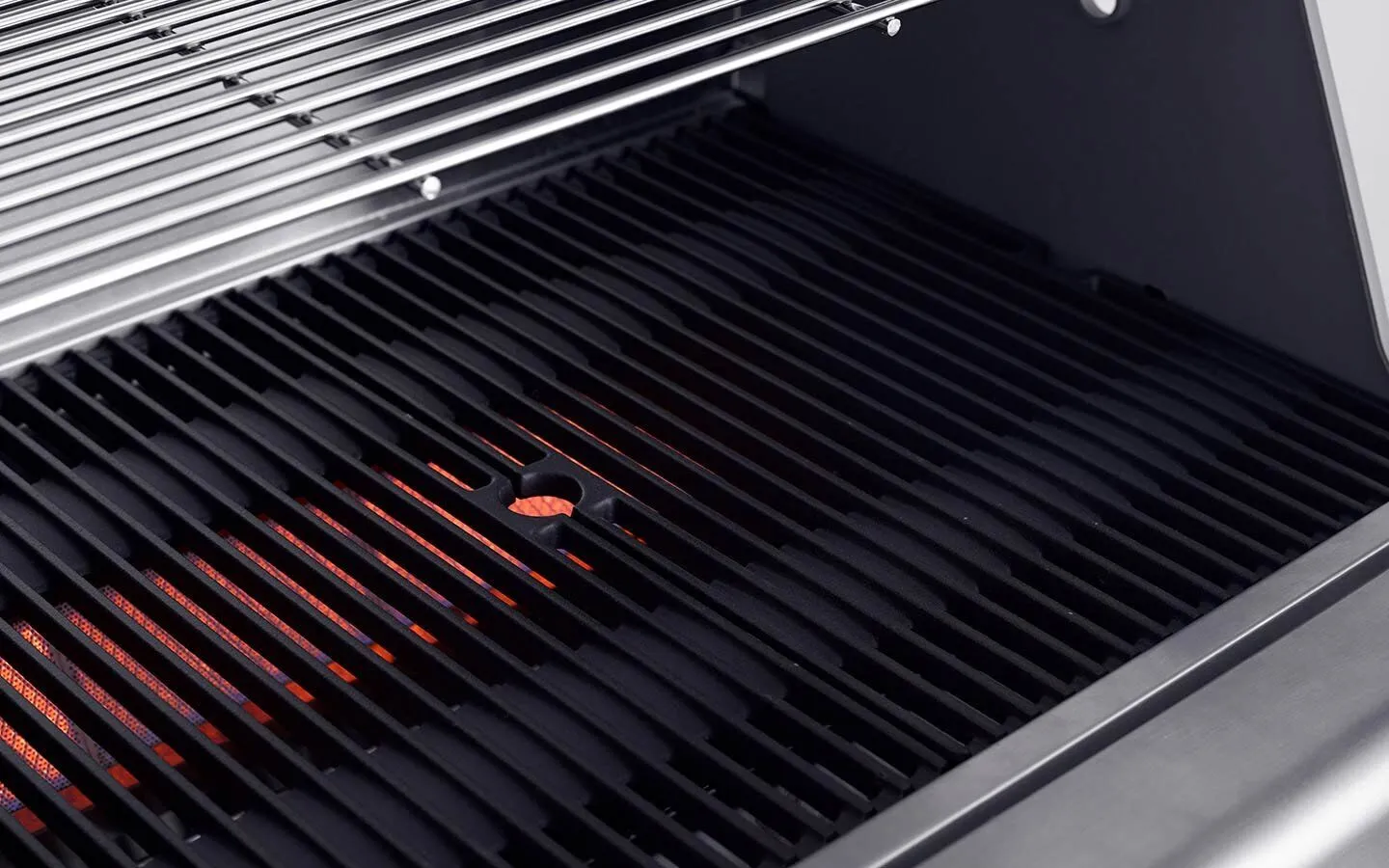

- 2x BBQ grills and 2-piece SS upper cooking rack included
Specifications
Accessories
Gas BBQ Hotplate
Hotplate (for CROSSRAY Gas BBQ) made from Ceramic coated cast iron
The optional hotplate is perfect when you are cooking foods preferred on a flat plate such as bacon & eggs, vegetables, hamburgers etc. Simply use in place of the grill plate. Required when using a smoker box and also assists with low n’ slow cooking.
Gas BBQ Grill Plate
CROSSRAY BBQ Grill Plate (for CROSSRAY Gas BBQ) made from Ceramic coated cast iron
The CROSSRAY Grill plate designed to be used on our CROSSRAY Gas BBQ is made from Ceramic coated cast iron which provides high rust resistance for long term cooking. This grill is perfect for when you want your foods to have that char grill effect.
Sorry, we couldn't find any posts. Please try a different search.
Natural Gas Conversion Kit
Natural gas conversion kit – brass jets, Alloy NG regulator
Utilise your mains connected Natural gas supply, so you never run out of gas again, with the NG Conversion Kit. Please check that your installation needs to be done by a qualified plumber/gas fitter.
Kit includes 4x main burner injectors, 4x pilot burner injectors,4x Turn down limit plates, instructions, and socket tool.
NG regulator with shut off valve and 2M hose connection to the bayonet outlet fitting
Other Crossray Products
Gas BBQs
Incorporating patented infrared burners, the Gas BBQ’s are available in free-standing or In-Built models.
Outdoor Kitchens
Perfectly designed to suit the CROSSRAY gas BBQ, the outdoor kitchens come with a range of options & inclusions.
Additional information
| Weight | 60 kg |
|---|---|
| Dimensions | 140 × 70 × 90 cm |
| Single Fridge | Single Fridge, No Fridge |
